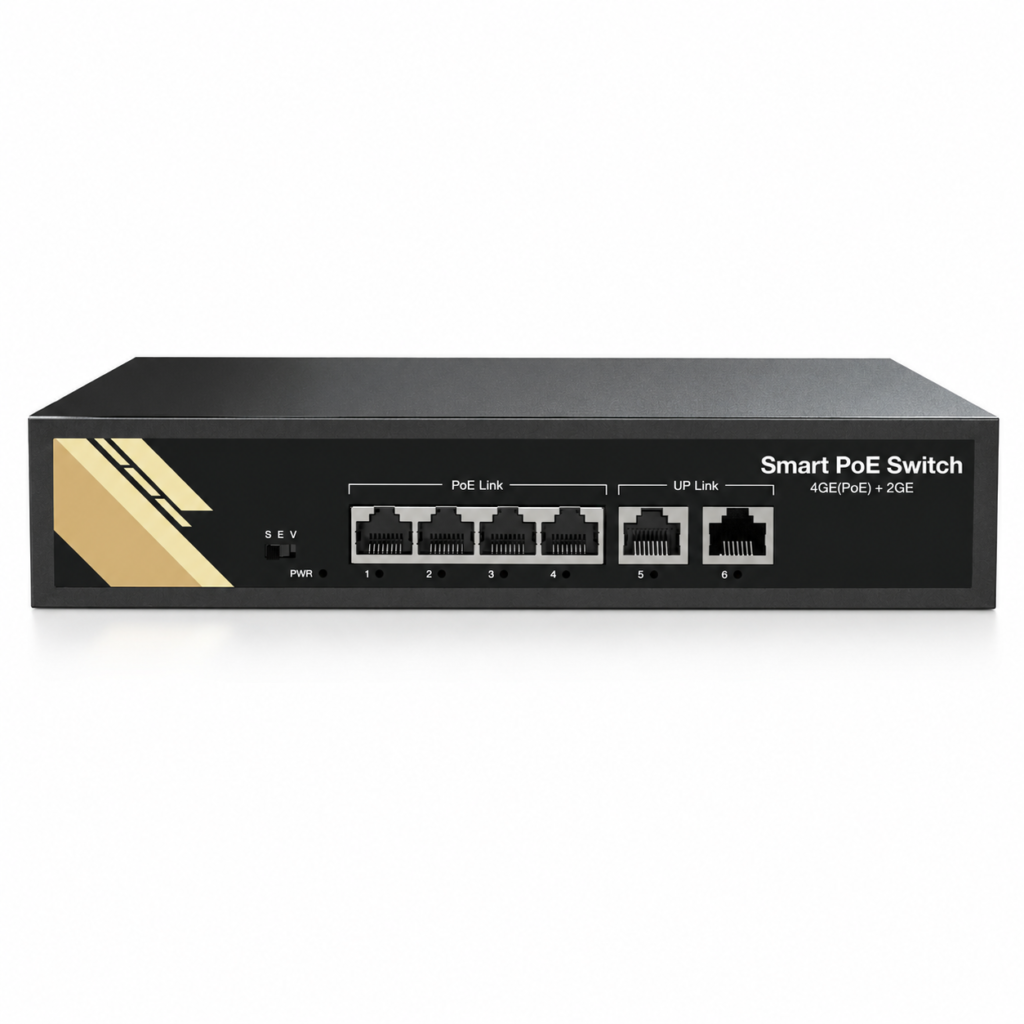

ES-G04PD
6-Port Gigabit PoE Switch · 4× PoE + 2× Uplink
The EFOCE ES-G04PD is a 6-Port Gigabit PoE Switch · 4× PoE + 2× Uplink.
Overview
Intro
The EFOCE ES-G04PD is a 6-Port Gigabit PoE Switch · 4× PoE + 2× Uplink.
Overview
6-Port Gigabit PoE Switch · 4× PoE + 2× Uplink.
Highlights
- 4 RJ45 downlink interface(s); maximum link rate 1000 Mbps
- 2 RJ45 uplink interface(s); maximum link rate 1000 Mbps
- 1 AC_INLET power interface(s)
- 1-Pack configuration
Specifications
Switching
Switching Capacity
12000 Mbps
Forwarding Rate
8.928 Mpps
Surge Protection (Common Mode)
4 kV
Surge Protection (Differential Mode)
1 kV
ESD (Air Discharge)
8 kV
ESD (Contact Discharge)
4 kV
Interfaces
Interface Type
rj45
Interface Role
downlink
Quantity
4
Max. Link Rate
1000 Mbps
PoE Capability
pse
PoE Standards
ieee_802_3af, ieee_802_3at
Interface Type
rj45
Interface Role
uplink
Quantity
2
Max. Link Rate
1000 Mbps
PoE Capability
none
Interface Type
ac_inlet
Interface Role
power
Quantity
1
Hardware
Product Type
ethernet_switch
Hardware Revision
V1.0
Applicable Technical Scope
eu
Network & Management
Connection Mode
wired
Connectivity Technologies
ethernet
Power Inputs
Power Input Type
ac_mains
Electrical Type
ac
Input Voltage (Min.)
100 V
Input Voltage (Max.)
240 V
Environment
Operating Temperature (Min.)
-10 °C
Operating Temperature (Max.)
55 °C
Operating Humidity (Min.)
5 %
Operating Humidity (Max.)
95 %
Storage Temperature (Min.)
-40 °C
Storage Temperature (Max.)
70 °C
Packs & Package Contents
ES-G04PD(1-Pack)
Units per Pack
1
Package Contents
Item Type
product
Quantity
1
Item: ES-G04PD
Item Type
cable
Item
Power Cable
Quantity
1
Item Type
qig
Item
Quick Start Guide
Quantity
1
Item Type
warranty_card
Item
Warranty Card
Quantity
1
