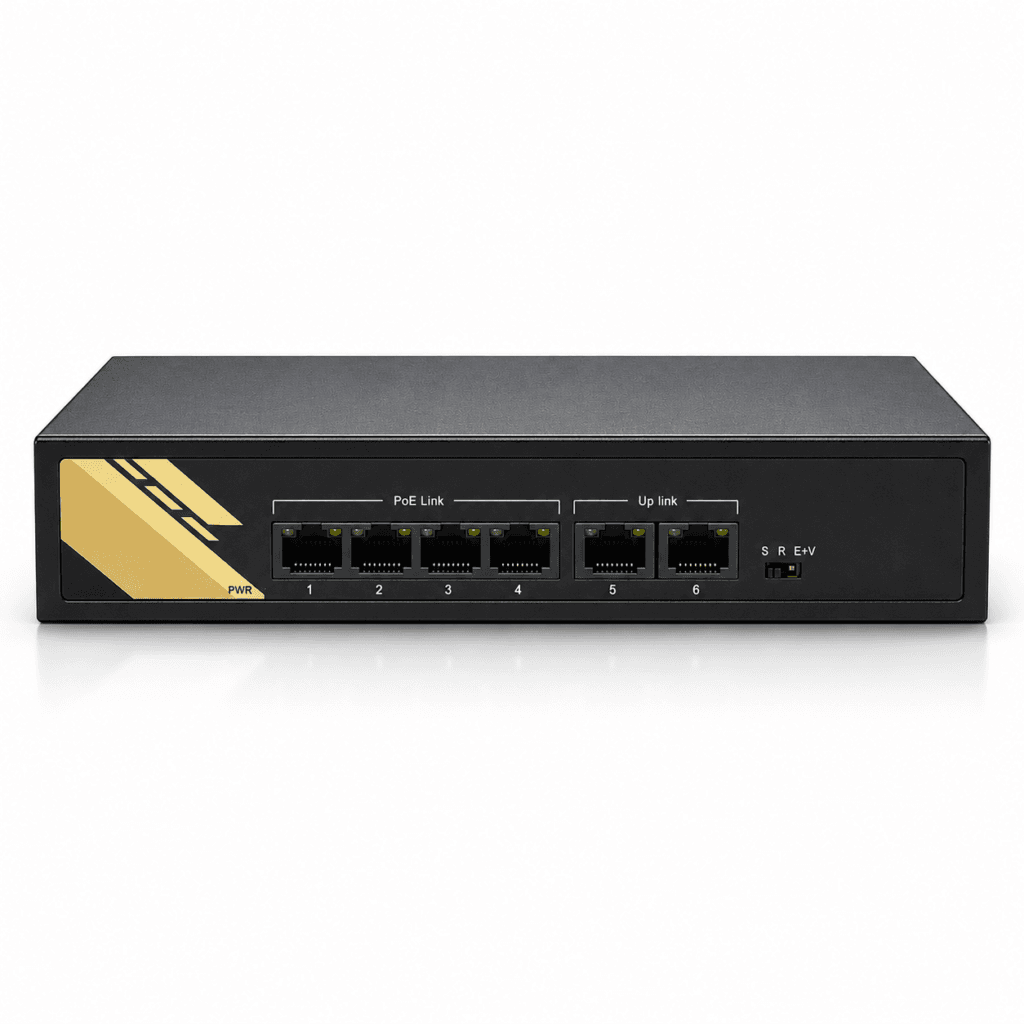

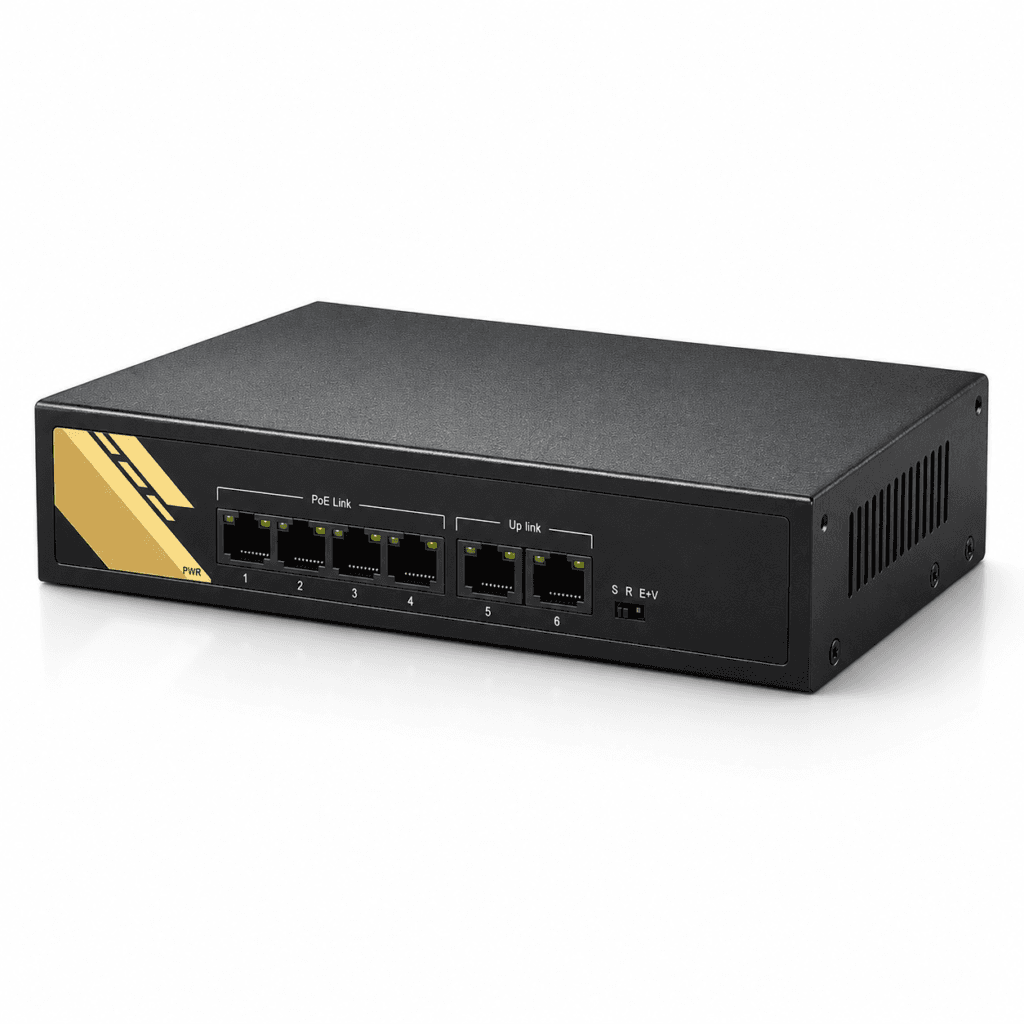

ES-F04PX
6-Port Fast Ethernet PoE Switch
A six-port Fast Ethernet switch with four PoE downlink ports and two uplink ports for wired networks.
Overview
The EFOCE ES-F04PX is an unmanaged Fast Ethernet PoE switch for indoor wired networks. Four downlink ports support IEEE 802.3af/at PoE, with up to 30 W per port within a total 45 W PoE budget. Two Fast Ethernet uplink ports connect the switch to the wider network.
- Six RJ45 ports, each supporting up to 100 Mbps
- Four PoE downlink ports and two uplink ports
- 100–240 V AC power input
- Package includes one ES-F04PX, one Power Cable and one User Guide
Specifications
Switching
Management Type
Unmanaged
Switching Capacity
1200 Mbps
Forwarding Rate
0.8928 Mpps
Total PoE Budget
45 W
Surge Protection (Common Mode)
4 kV
Surge Protection (Differential Mode)
2 kV
ESD (Air Discharge)
8 kV
ESD (Contact Discharge)
6 kV
Interfaces
Interface Type
rj45
Interface Role
downlink
Quantity
4
Max. Link Rate
100 Mbps
PoE Capability
pse
PoE Standards
ieee_802_3af, ieee_802_3at
PoE Output per Port (Max.)
30 W
PoE Output Voltage
52 V
Interface Type
rj45
Interface Role
uplink
Quantity
2
Max. Link Rate
100 Mbps
Hardware
Product Type
ethernet_switch
Hardware Revision
V1.0
Applicable Technical Scope
eu
Network & Management
Connection Mode
wired
Connectivity Technologies
ethernet

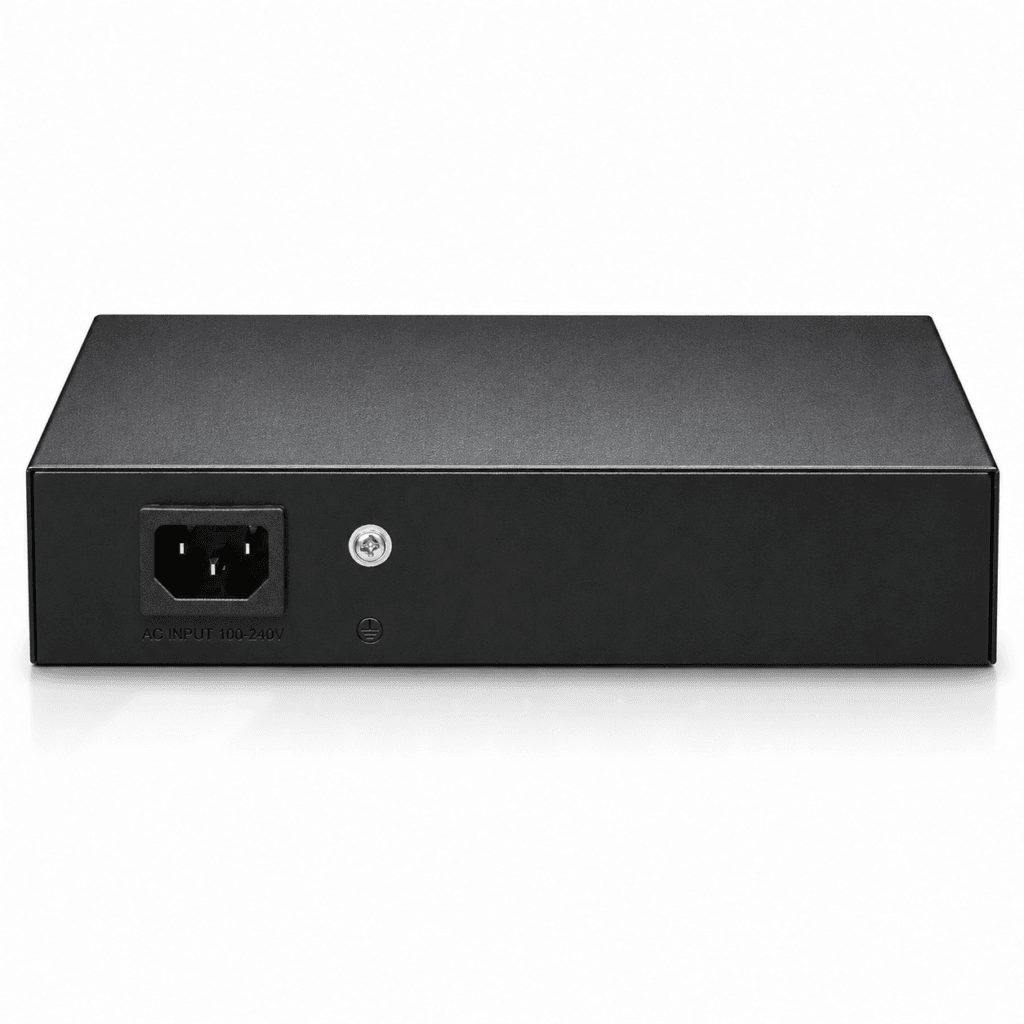

Power Inputs
Power Input Type
ac_mains
Electrical Type
ac
Input Voltage (Min.)
100 V
Input Voltage (Max.)
240 V
Physical
Width
200 mm
Depth
118 mm
Height
44 mm
Net Weight
540 g
Deployment Environment
indoor
Environment
Operating Temperature (Min.)
-10 °C
Operating Temperature (Max.)
55 °C
Operating Humidity (Min.)
5 %
Operating Humidity (Max.)
95 %
Storage Temperature (Min.)
-40 °C
Storage Temperature (Max.)
70 °C
Packs & Package Contents
ES-F04PX
Units per Pack
1
Packaging Type
retail_box
Package Contents
Item Type
product
Quantity
1
Item: ES-F04PX
Item Type
cable
Item
Power Cable
Quantity
1
Item Type
manual
Item
User Guide
Quantity
1
