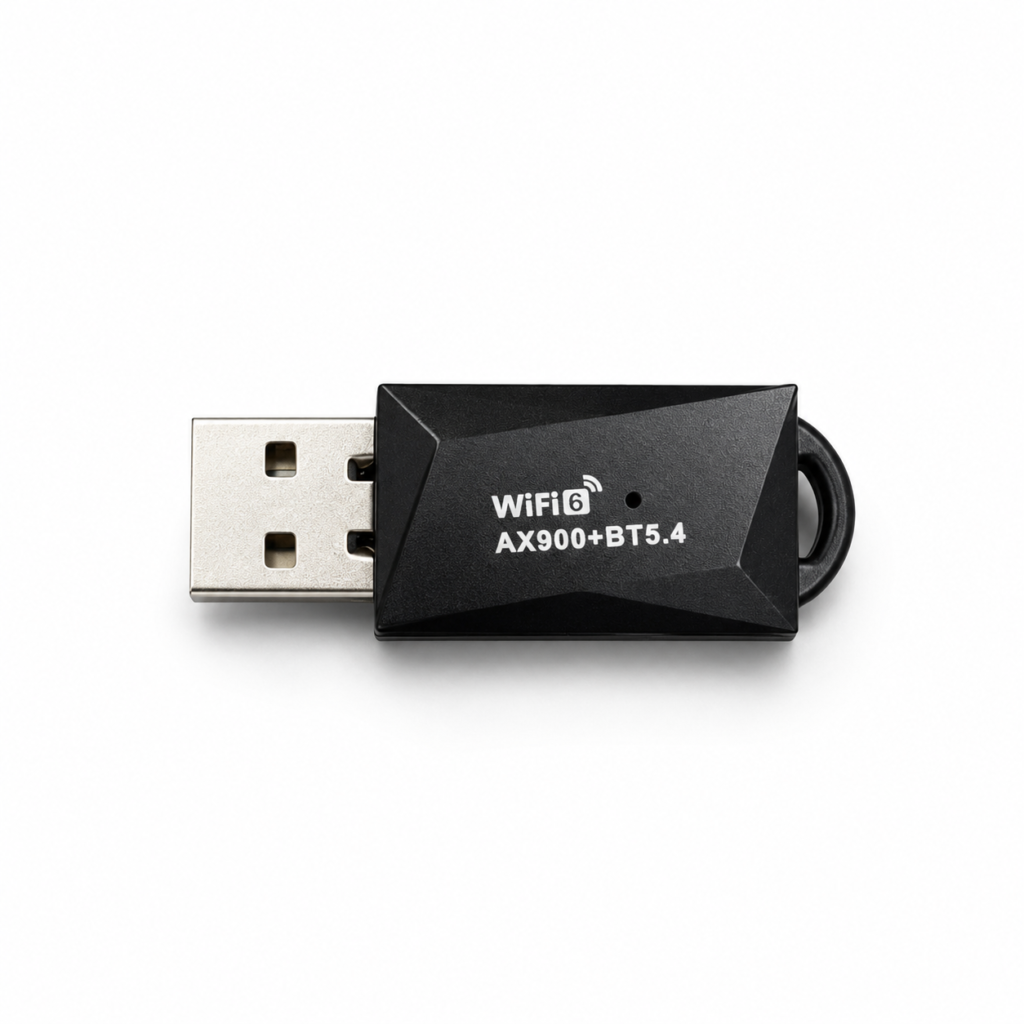

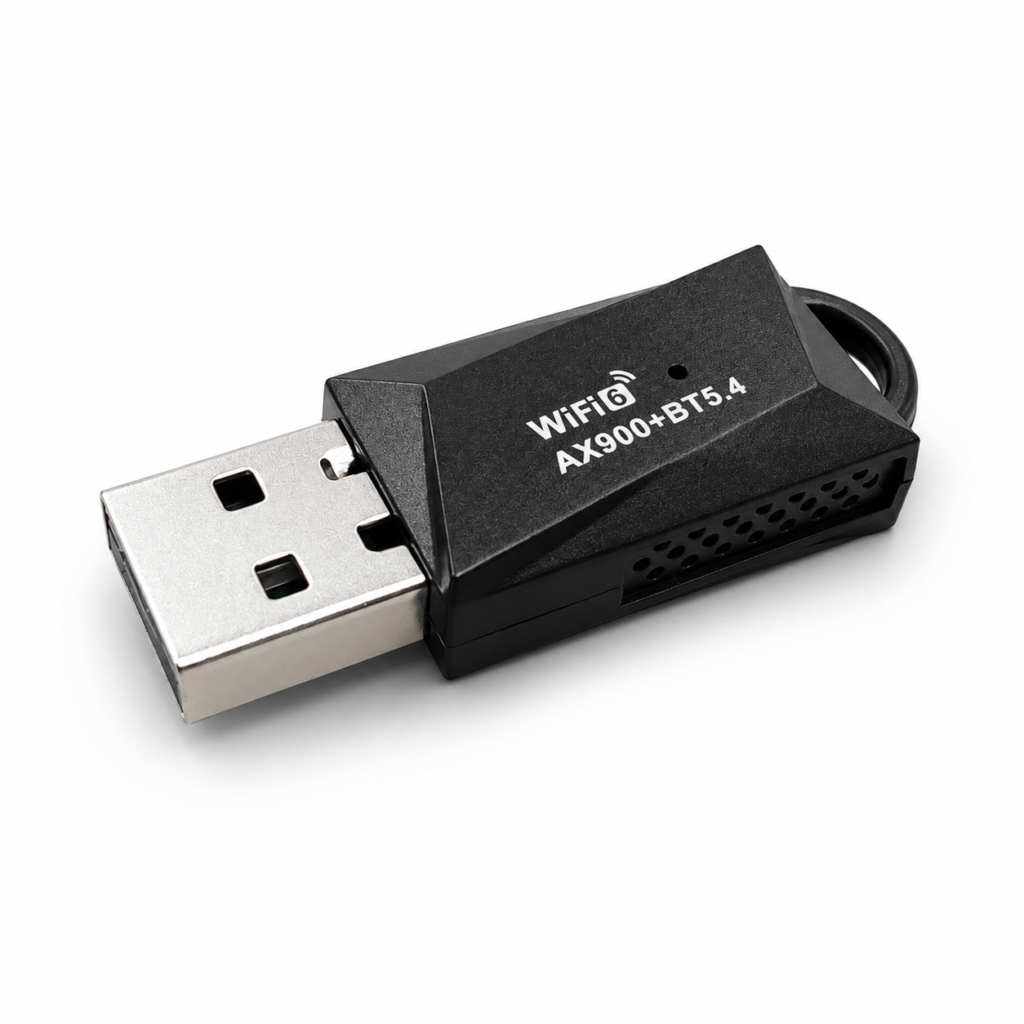

EA-609
Wi-Fi 6 + Bluetooth 5.4 Combo USB Adapter · AX900
The EFOCE EA-609 is a Wi-Fi 6 + Bluetooth 5.4 Combo USB Adapter · AX900.
Overview
Intro
The EFOCE EA-609 is a Wi-Fi 6 + Bluetooth 5.4 Combo USB Adapter · AX900.
Overview
Wi-Fi 6 + Bluetooth 5.4 Combo USB Adapter · AX900.
Highlights
- Wi-Fi generation: WIFI 6
- Wi-Fi class: AX900
- Radio band: band 2 4 ghz; maximum PHY rate 286 Mbps
- Radio band: band 5 ghz; maximum PHY rate 600 Mbps
- 1 USB_A host interface(s)
- 1-Pack configuration
Specifications
Wireless
Wi-Fi Generation
wifi_6
Wi-Fi Class
AX900
OFDMA
yes
MU-MIMO
yes
Wi-Fi Security
wpa_personal, wpa2_personal
Radios
Frequency Band
band_2_4_ghz
Max. PHY Rate
286 Mbps
Antenna Gain
2 dBi
Antenna Type
internal
Frequency Band
band_5_ghz
Max. PHY Rate
600 Mbps
Antenna Gain
2 dBi
Antenna Type
internal
Interfaces
Interface Type
usb_a
Interface Role
host
Quantity
1
Hardware
Product Type
wifi_adapter
Hardware Revision
V1.0
Applicable Technical Scope
eu
Network & Management
Connection Mode
wireless
Connectivity Technologies
wifi, bluetooth
Power Inputs
Power Input Type
usb_bus
Physical
Width
15 mm
Depth
8 mm
Height
33 mm
Environment
Operating Temperature (Min.)
0 °C
Operating Temperature (Max.)
40 °C
Operating Humidity (Min.)
10 %
Operating Humidity (Max.)
90 %
Storage Temperature (Min.)
-40 °C
Storage Temperature (Max.)
70 °C
Storage Humidity (Min.)
5 %
Storage Humidity (Max.)
90 %
Packs & Package Contents
EA-609(1-Pack)
Units per Pack
1
Package Contents
Item Type
product
Quantity
1
Item: EA-609
