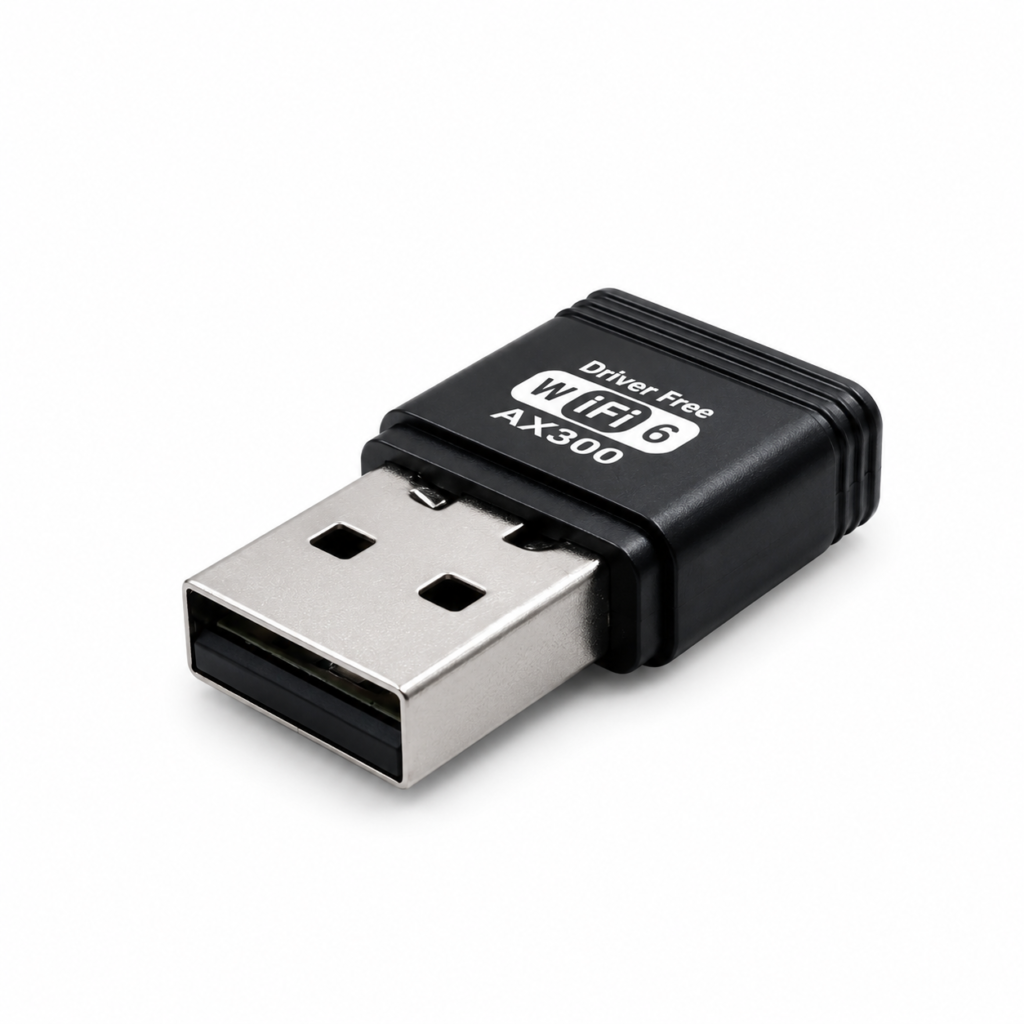

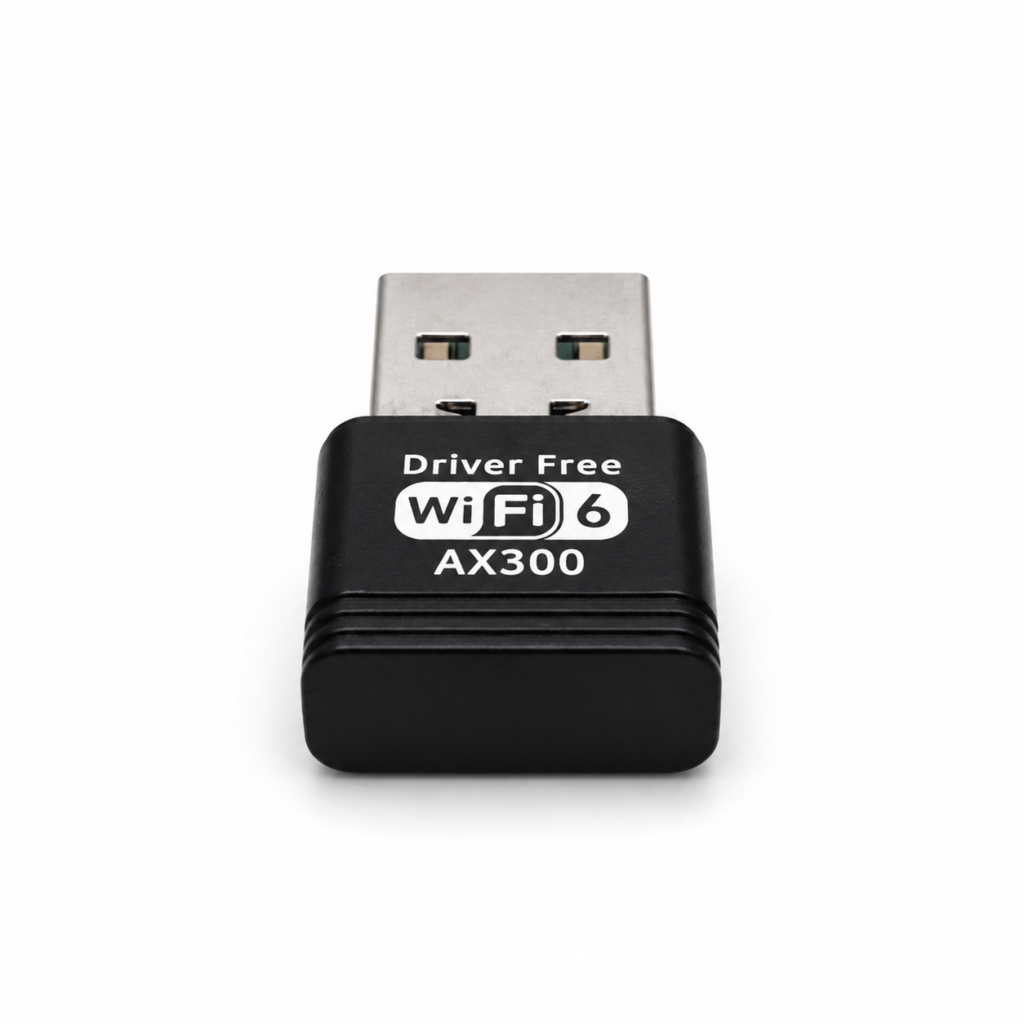

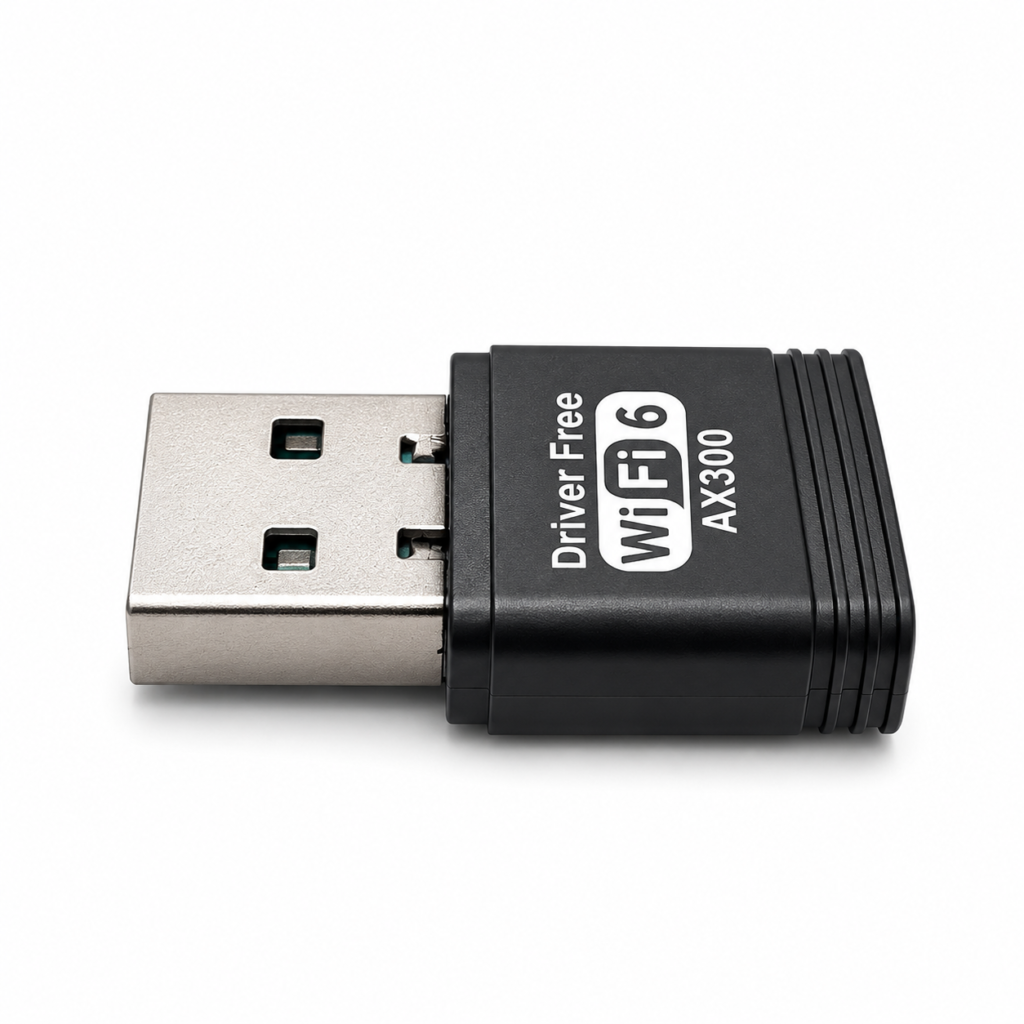

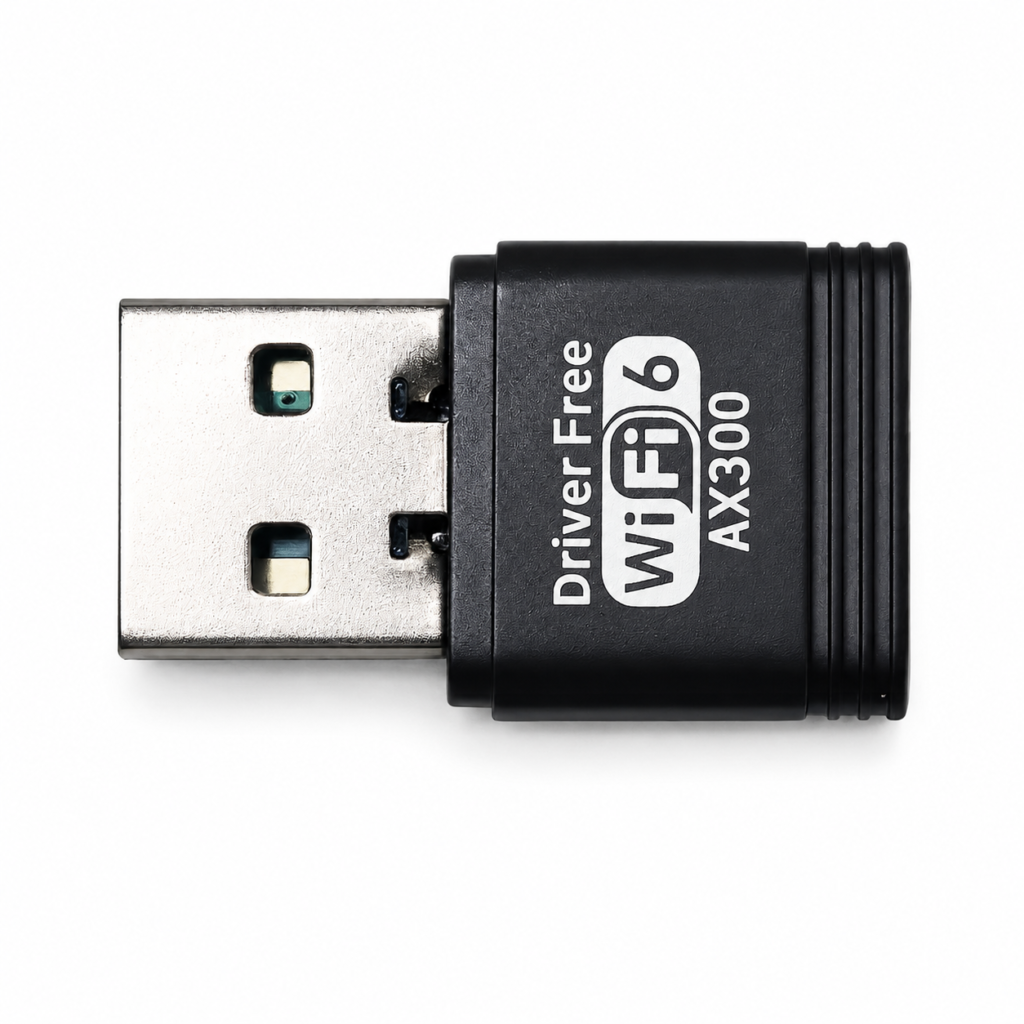

EA-603
USB Wireless Network Adapter · Wi-Fi 6 AX300
The EFOCE EA-603 is a USB Wireless Network Adapter · Wi-Fi 6 AX300.
Overview
Intro
The EFOCE EA-603 is a USB Wireless Network Adapter · Wi-Fi 6 AX300.
Overview
USB Wireless Network Adapter · Wi-Fi 6 AX300.
Highlights
- Wi-Fi generation: WIFI 6
- Wi-Fi class: AX300
- Radio band: band 2 4 ghz; maximum PHY rate 286.8 Mbps
- 1 USB_A host interface(s)
- 1-Pack configuration
Specifications
Wireless
Wi-Fi Generation
wifi_6
Wi-Fi Class
AX300
OFDMA
yes
MU-MIMO
yes
Radios
Frequency Band
band_2_4_ghz
Max. PHY Rate
286.8 Mbps
Max. Channel Width
40 MHz
Antenna Type
internal
Interfaces
Interface Type
usb_a
Interface Role
host
Quantity
1
Hardware
Product Type
wifi_adapter
Hardware Revision
V1.0
Applicable Technical Scope
eu
Network & Management
Connection Mode
wireless
Connectivity Technologies
wifi
Power Inputs
Power Input Type
usb_bus
Physical
Width
18 mm
Depth
8 mm
Height
30 mm
Environment
Operating Temperature (Min.)
-20 °C
Operating Temperature (Max.)
70 °C
Operating Humidity (Min.)
5 %
Operating Humidity (Max.)
95 %
Storage Temperature (Min.)
-40 °C
Storage Temperature (Max.)
90 °C
Packs & Package Contents
EA-603(1-Pack)
Units per Pack
1
Package Contents
Item Type
product
Quantity
1
Item: EA-603
